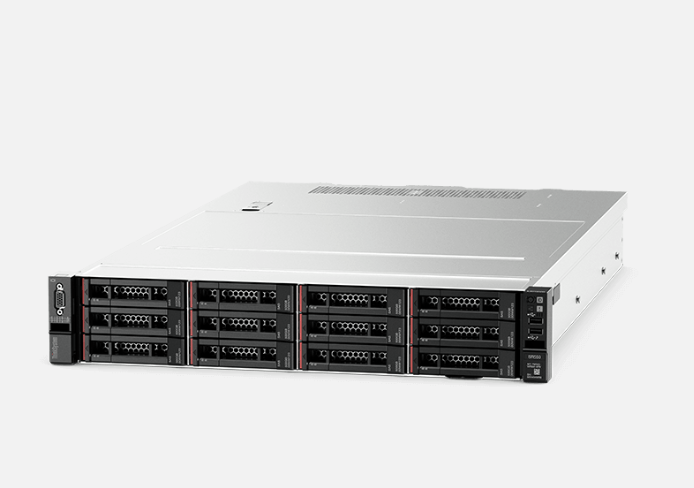

Lenovo ThinkSystem SR550 Intel Xeon Silver 4116 12C

Note: Prices are VAT inclusive. Price and Promo are subject to change without prior notice.

Features

Highlights

Incorporates the latest processor, memory, storage, I/O, and networking technologies
Industry-leading reliability and customer satisfaction (per independent industry surveys)
Balanced features and scalability for greater value
Shared components across the ThinkSystem portfolio for reduced parts inventory, quicker servicing, and higher availability
Easy-to-use XClarity enterprise-class systems management that leverages industry standards, such as RedFish
Highly energy-efficient, with ASHRAE A2 compliance, and A4 compliance (with limitations) for up to 45°C continuous operation

Description

Lenovo ThinkSystem SR550 Intel Xeon Silver 4116 12C

7X04A00BSG	ThinkSystem SR550, Intel Xeon Silver 4116 12C 85W 2.1GHz, 1x 8GB, RAID 530-8i, 8x 2.5″ HS, 1x 550W HS, XCC Std
Processor	1x 4116 12C 85W 2.1GHz, up to two Intel Xeon Processor Scalable Family of processors
Form Factor	2U rack-mount.
Chipset	Intel C622.
Memory min/max	1x 8GB memory, Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel). Support for RDIMMs and LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2666 MHz.
Hard Disk min/max	Open Bay / 8x 2.5″ Hotswap HDDs. Can be expanded up to 16x 2.5″ Hotswap HDDs
Optical Drive	None. Support for an external USB DVD RW Optical Disk Drive
ServeRAID	RAID 0/1/10/5/50 with RAID 530-8i
Network	2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support), 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
Graphics	Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920×1200 at 60 Hz with 16 bits per pixel.
Power Supply	1x 750W HS PSU. Up to two redundant hot swap PSU
Warranty	3 Years Parts, Labour, On Site, 4 Hour Response Time, 24×7

Sold Separately

Other Models
LEN7X04A00KSG	7X04A00KSG	SR550, Xeon Silver 4112 4C 2.6GHz, 1x8GB (1Rx8 1.2V) RDIMM, 1×2.5 SATA/SAS 8-Bay, 530-8i PCIe, 1x750W, 1xToolless Slide Rail
LEN7X04A00GSG	7X04A00GSG	SR550, Xeon Silver 4110 8C 2.1GHz, 1x8GB (1Rx8 1.2V) RDIMM, 1×2.5 SATA/SAS 8-Bay, 530-8i PCIe, 1x750W, 1xToolless Slide Rail
LEN7X04A00VSG	7X04A00VSG	SR550, Xeon Gold 5122 4C 3.6GHz, 1x8GB (1Rx8 1.2V) RDIMM, 1×2.5 SATA/SAS 8-Bay, 530-8i PCIe, 1x750W, 1xToolless Slide Rail
LEN7X04A01ESG	7X04A01ESG	SR550, Xeon Gold 5118 12C 2.3GHz, 1x8GB (1Rx8 1.2V) RDIMM, 1×2.5 SATA/SAS 8-Bay, 530-8i PCIe, 1x750W, 1xToolless Slide Rail
LEN7X04A017SG	7X04A017SG	SR550, Xeon Gold 5120 14C 2.2GHz, 1x8GB (1Rx8 1.2V) RDIMM, 1×2.5 SATA/SAS 8-Bay, 530-8i PCIe, 1x750W, 1xToolless Slide Rail
LEN7X04A01ASG	7X04A01ASG	SR550, Xeon Gold 6130 16C 2.1GHz, 1x8GB (1Rx8 1.2V) RDIMM, 1×2.5 SATA/SAS 8-Bay, 530-8i PCIe, 1x750W, 1xToolless Slide Rail
LEN7X04A01XSG	7X04A01XSG	SR550, Xeon Gold 6138 20C 2.0GHz, 1x8GB (1Rx8 1.2V) RDIMM, 1×2.5 SATA/SAS 8-Bay, 530-8i PCIe, 1x750W, 1xToolless Slide Rail

Memory Options
LEN7X77A01301	7X77A01301	ThinkSystem 8GB TruDDR4 2666 MHz (1Rx8 1.2V) RDIMM
LEN7X77A01302	7X77A01302	ThinkSystem 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM
LEN7X77A01304	7X77A01304	ThinkSystem 32GB TruDDR4 2666 MHz (2Rx4 1.2V) RDIMM
LEN7X77A01305	7X77A01305	ThinkSystem 64GB TruDDR4 2666 MHz (4Rx4 1.2V) LRDIMM

Hard Disk Option
	2.5-inch hot-swap HDDs – 12 Gb SAS 10K
LEN7XB7A00024	7XB7A00024	ThinkSystem 2.5″ 300GB 10K SAS 12Gb Hot Swap 512n HDD
LEN7XB7A00025	7XB7A00025	ThinkSystem 2.5″ 600GB 10K SAS 12Gb Hot Swap 512n HDD
LEN7XB7A00026	7XB7A00026	ThinkSystem 2.5″ 900GB 10K SAS 12Gb Hot Swap 512n HDD
LEN7XB7A00027	7XB7A00027	ThinkSystem 2.5″ 1.2TB 10K SAS 12Gb Hot Swap 512n HDD
LEN7XB7A00028	7XB7A00028	ThinkSystem 2.5″ 1.8TB 10K SAS 12Gb Hot Swap 512e HDD
	2.5-inch hot-swap HDDs – 12 Gb SAS 15K
LEN7XB7A00021	7XB7A00021	ThinkSystem 2.5″ 300GB 15K SAS 12Gb Hot Swap 512n HDD
LEN7XB7A00022	7XB7A00022	ThinkSystem 2.5″ 600GB 15K SAS 12Gb Hot Swap 512n HDD
LEN7XB7A00023	7XB7A00023	ThinkSystem 2.5″ 900GB 15K SAS 12Gb Hot Swap 512e HDD
	2.5-inch hot-swap HDDs – 12 Gb NL SAS
LEN7XB7A00034	7XB7A00034	ThinkSystem 2.5″ 1TB 7.2K SAS 12Gb Hot Swap 512n HDD
LEN7XB7A00035	7XB7A00035	ThinkSystem 2.5″ 2TB 7.2K SAS 12Gb Hot Swap 512n HDD
	2.5-inch hot-swap SED HDDs – 12 Gb SAS 10K
LEN7XB7A00030	7XB7A00030	ThinkSystem 2.5″ 300GB 10K SAS 12Gb Hot Swap 512n HDD SED
LEN7XB7A00031	7XB7A00031	ThinkSystem 2.5″ 600GB 10K SAS 12Gb Hot Swap 512n HDD SED
	2.5-inch hot-swap HDDs – 6 Gb NL SATA
LEN7XB7A00036	7XB7A00036	ThinkSystem 2.5″ 1TB 7.2K SATA 6Gb Hot Swap 512n HDD
LEN7XB7A00037	7XB7A00037	ThinkSystem 2.5″ 2TB 7.2K SATA 6Gb Hot Swap 512e HDD

M.2 enablement kits
LEN7Y37A01092	7Y37A01092	ThinkSystem M.2 Enablement Kit
LEN7Y37A01093	7Y37A01093	ThinkSystem M.2 with Mirroring Enablement Kit

12 Gb SAS/SATA RAID controllers
LEN7Y37A01082	7Y37A01082	ThinkSystem RAID 530-8i PCIe 12Gb Adapter
LEN7Y37A01084	7Y37A01084	ThinkSystem RAID 930-8i 2GB Flash PCIe 12Gb Adapter

External Optical drive
LEN7XA7A05926	7XA7A05926	ThinkSystem External USB DVD RW Optical Disk Drive

Power Supply
LEN7N67A00882	7N67A00882	ThinkSystem 550W (230V/115V) Platinum Hot-Swap Power Supply
LEN7N67A00883	7N67A00883	ThinkSystem 750W (230/115V) Platinum Hot-Swap Power Supply
LEN7N67A00884	7N67A00884	ThinkSystem 750W (230V) Titanium Hot-Swap Power Supply

Lockable front bezel
LEN7Z17A02580	7Z17A02580	ThinkSystem 2U Security Bezel
